Ionmax+ ED12 user manual

Welcome to the user manual and installation guide for your Ionmax+ ED12 industrial desiccant dehumidifier. The user manual offers instructions to ensure successful setup, operation and maintenance of your dehumidifier.

Thank you for purchasing the Ionmax+ ED12 Industrial Desiccant Dehumidifier. This dehumidifier is designed for continuous use over a long period of time with minimal supervision and maintenance. Paired with a Wi-Fi app, you can control and monitor your indoor air humidity easily from your mobile phone.

Please read this manual carefully before use to ensure proper usage and save these instructions for future reference.

Safety Instructions

When using electrical appliances, basic safety precautions should always be followed:

• The unit is designated for indoor operation. Never operate or store the unit in direct sunlight.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not clean the dehumidifier by spraying it or immersing it in water. Do not use any chemicals when cleaning the dehumidifier.
• Do not insert any object into the opening of the dehumidifier. Do not place anything on top of the dehumidifier and do not cover with any kind of material while in use.
• Do not unplug the power cord before pressing the Power key to "OFF", as this could damage the dehumidifier.
• Disconnect from the mains when unit is not in use, when moving the unit, and before cleaning the unit or any of its components. To disconnect, grip the plug with dry hands and pull from the socket. Never pull by the cord.
• Do not run power cord under carpeting, or cover with rugs or runners. Arrange the cord away from areas where it may be tripped over.
• Never connect to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a licensed electrician.
• Place the dehumidifier in location appropriate to the appliance IP rating (see technical data).
• Any service other than regular cleaning setting fan mode or filter replacement should be performed by an authorised service representative. Failure to do so could result in a loss of warranty. Your dehumidifier is supplied with an electrical cable (~2m) and an earthed plug.
• Never operate this appliance if it has a damaged cord or plug. If the supply cord is damaged an approved service representative or a similar qualified person must replace it in order to avoid any hazards.
• There should be direct access to the electrical plug after connecting the power.
• This product is not made for DIY repair.
• Do not use your dehumidifier under the following conditions:
• if the power cable is damaged
• close to heat source
• near flammable gas or combustibles, such as alcohol, insecticides, petrol, gas, oxygen, gasoline, benzene, thinner, etc. as it may cause an explosion or fire.
• where small children or pets may be left unattended
• where the power cable may be easily damaged
• where there is a risk of liquids falling on the unit
• where it may be damaged by chemicals

⚠️ The installation must be in accordance with the regulations of the country where the unit is used.

🔌 This appliance must be earthed and should only be connected to an earthed 220-240 V / 50 Hz mains supply.

Product Components

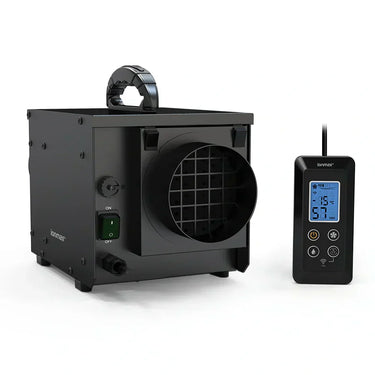

The Ionmax+ ED12 industrial desiccant dehumidifier will come with:

1 x Ionmax+ ED12

1 x Wi-Fi remote controller with display (5m cord)

1 x 1m wet hose ⌀ 1.5" (40mm)

1 x External wall flange (40mm)

1 x Pre-filter

Product Diagram

How it Works

The air to be processed is suctioned via a filter into the cabinet by a centrifugal fan. The pressured air mainly passes a desiccant rotor to leave moisture on it and becomes dry air flowing out through the main outlet. A motor slowly drives the rotor to pass through a heater-collector portion where the moisture on the rotor will be evaporated out to the wet air outlet, and the rotor is regenerated for later moisture adsorption again. The wet air is a small part of the pressured air that passes the heater to be heated up and then passes the rotor to bring moisture out.

Unit Setup

• Mount the unit onto the ceiling, wall, or an inclined plane using the four holes on top of the unit.
• The handle can be removed for mounting.
• Please restore the screws in position to prevent air from leaking.
• Wet-air-out should be declined from the dehumidifier where possible to prevent condensation flowing back.

Positioning the dehumidifier

The dehumidifier is designed for indoor use, but can be placed either inside (internal positioning) or outside (external positioning) the room to be dried.

(A) Internal positioning

1. Place centrally inside the room.
2. Ensure inlet and outlet ducts are clear of obstruction.
3. If required, ducts can be connect to the outlet and/or inlet to direct the drying to specific areas.
4. The wet air out MUST be ducted outside the room.

(B) External positioning

Note: The humidity sensor is located inside the unit near the air input. When installed using external positioning, duct the return air from the space, if necessary, to improve humidity control.

NOTE:

1. As the wet-air-out-discharge is warm and very humid, ensure it is directed
   where it will have no adverse effect on the immediate environment.
2. Keep the duct length as short as possible to minimize static pressure loss.
3. All duct connections must be air tight and vapor tight to ensure full performance.
4. The ducting must be insulated when there is a risk of freezing.
5. The opening to the inlet duct should be located to prevent picking up dust and debris, rain and snow or contaminants such as engine exhaust gases, steam and harmful vapors.
6. Wet air duct must resist corrosion and withstand up to 70°C.
7. Wet-air-out should be declined from the dehumidifier where possible if there is a risk of any condensation build up in the exhaust duct running back into the dehumidifier.
   This can be avoided either with short wet-air-out duct lengths or adequately insulating the wet-air-duct to prevent condensation.
   Should water be seen dripping from the dehumidifier, switch off the appliance immediately.
   Allow water in the unit to dry completely.
   Correct the defect in the wet-air-out ducting and reconnect to the power to start operating again.
   Do not operate if there is a concern the unit is not thoroughly dry inside.
8. The wet-air-out flange outlet is 73mm and is compatible with pipes sized 76mm or 75mm (with fastener).
   Decreasing the exhaust pipe diameter will decrease performance. Flexible ducting may be used on all inlets and outlets.
   All ducting lengths should be kept to a minimum. Longer lengths will reduce performance.
   For the maximum recommended lengths, refer to the Specifications table.
9. Input air filter must be used to prevent contamination to the interior components of the machine.
10. Periodical cleaning or replacement of the filter is required.

How to Assemble the Connecting Cord and Remote

1. Remove the display cover.

2. Insert the cable tie end through one hole, loop it back through another, then close it to form  a loose circle.

3. Pass the connecting cord end through the circle and secure it firmly with the connector.

4. Fasten the cable tie to secure the cable, trim the excess cable tie, and close the display cover.

Operating Instructions

1. Note: Before operation, ensure the filter(s) are installed and their packing bags are removed.
2. Plug the unit into the rated power source and switch it on. The switch will light up and the unit will run continuously (if no remote control is connected).
3. To use the wired remote, first switch off the unit, uncover the terminal for connection, then plug in and fasten the nut.
4. With the remote control connected, switch on the unit. The unit will startup in standby mode (not operating) until the remote control buttons are pressed.



On/Off Button

Press this button to switch the unit on and off.

When switched on again, the unit will run using its previous settings.

Note: If power failure occurs when the unit is switched on, it will automatically resume operation when power resumes.

Humidity Button

Press to set the desired humidity level between 30 to 80% RH (in increments of 5% RH) or Cont (continuous) mode.

	The digit and "SET %RH" will show on the remote control display when the humidity is being set
	When Co (Continuous) is set, "Cont." will show on the remote control display and the unit will dehumidify continuously.
	The ambient humidity (0~99%) will always show in the lower portion of the remote control display, e.g.:
	"Auto Pause" will show when the ambient humidity reaches the set humidity. The unit will stop operating and will periodically run to detect the ambient humidity. When the ambient humidity is detected to be 5% higher than the set humidity, then the unit will return to operating.

 Fan / Mode Button

Press the Fan/Mode button to choose between the following:

	Low Runs on low fan and low heater
	High Runs on high fan and high heater
	Auto Runs on high when ambient humidity is over 10% higher than the set RH Runs on low when ambient humidity is less than 5% higher than the set RH

 Display Button

Press to change the display on the unit remote control to display either temperature in °C, temperature in °F, or the set humidity (SET %RH).

Wi-Fi Pairing

Press the Display Button for 3 seconds until the Wi-Fi icon 🛜 on the remote control  starts blinking — this indicates that the unit is ready to be paired with the mobile app.

When the Wi-Fi icon is lit up (not blinking), it indicates that the unit is successfully paired to a mobile app.

Warning Message

The warning symbol ⚠️ and "E" message shows up when there is an abnormality and the unit stops. Refer to the Troubleshooting section for further details.



Wi-Fi Setup

Ionmax Mobile App

Click the links below to download the Ionmax mobile app for your smartphone.



⚠️ If you have any issues with connecting your Ionmax appliance to the Ionmax app, you may also use the free Tuya Smart app, which you can access through these direct links:

Google Play Store: Tuya Smart

Apple Store: Tuya Smart

Need further help? Read our support instructions on how to install the Ionmax mobile app

App Settings

Once the dehumidifier is successfully paired with the mobile app, the following settings can be monitored and controlled from the app:

Cleaning and Maintenance

The dehumidifier is designed for continuous use over a long period of time with minimal supervision. Under normal operating conditions, maintenance requirements are minimal. The service interval depends mainly on the operational conditions and working environment.

Cleaning

1. Disconnect from the power supply before cleaning or servicing the unit or any of its components.
2. Wipe thoroughly clean with a moist cloth (a soft, damp cloth) and a mild household detergent.
3. DO NOT clean any parts of the dehumidifier by spraying it or immersing it in water.
4. DO NOT use any chemicals, petrol, aggressive detergents or other cleansing solutions when cleaning the dehumidifier.


Components	Maintenance
Pre-filter	The pre-filter should be checked periodically (~every 2 months or less) and cleaned if necessary. Remove it from the dehumidifier, then clean with a vacuum cleaner or hand wash with water only. Ensure it is completely dry before replacing it into  the dehumidifier. Replace the pre-filter if it is broken. ATTENTION: Do not run the dehumidifier without the pre-filter fitted as dust will impair the performance of the rotor.
HEPA H11 filter (if installed)	Replace after 6 months of use, or less if the process air contains heavy pollutants.
Unit casing	Check for physical damage and clean the outside of the unit as necessary.
Power cord	Always check if the cord and plug are in good condition. Call an authorised service agent if repair is needed.
Temperature / humidity sensor & control panel	Check for physical damage



Troubleshooting Guide

Problem: Unit not dehumidifying enough

Probable Cause: Set humidity level is too high
Solution: Choose a lower humidity setting for drier air.

Probable Cause: The filter is blocked and is reducing the performance
Solution: Clean or replace the filter(s).



Problem: Unit  is not operating and "Auto Pause" is shown

Probable Cause: The unit stops dehumidifying when ambient humidity has reached the setting. The unit will periodically run on fan circulation for a few minutes to check the ambient humidity level.
Solution: This is normal. The unit will resume operation when ambient humidity is 5% higher than the set humidity level.



Problem: Unit is not operating and shows warning symbol ⚠️ and "E" messages.

E8 or E9: The ambient temperature is outside of the working temperature range, higher than 40°C or lower than -15°C.
Solution: This is normal. The unit will resume operation when the ambient temperature is within range (-15°C ~ 40°C).

E3 or E5: Safety protection as internals are overheated
Solution: Unplug the unit. Check if the air inlet, filter or air outlet is blocked. Clean or remove any obstructions. Wait for at least 30 minutes before restarting the unit.

Other E code: Internal sensing failure
Solution: Contact authorised repair center



If the problem still persists, contact a local authorised repair center. Do not disassemble or repair by yourself.



Unit Measurements
