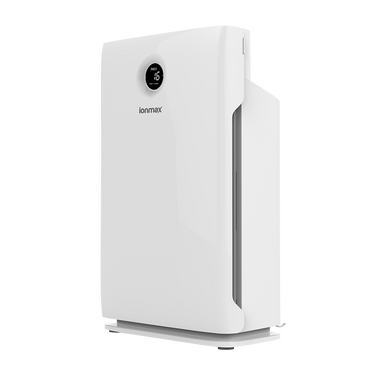

Thank you for purchasing the Ionmax ION430 UV HEPA Air Purifier. The Ionmax ION430 can help to improve the indoor quality in your home or office. Please read this manual carefully before use to ensure proper usage and save these instructions for future reference.
⚠️ Note: Remove plastic bags from filters before first use
Safety instructions
PLEASE READ ALL THE TIPS AND WARNINGS BELOW BEFORE USING THE AIR PURIFIER.
- Use only as directed in the User Manual.
- Do not allow children or persons with reduced physical, sensory, or mental capabilities to operate the unit without adult supervision.
- Only designed for use in a 220-240V, 50Hz outlet.
- Use indoors only.
- Only operate the unit when it is fully assembled.
- Never touch the unit with wet hands or allow it to come into contact with water.
- Turn off all controls before unplugging the power supply.
- Always disconnect the unit from the power supply before moving or cleaning the unit, and when the unit is not in use.
- When removing the power plug, always hold the plug and never pull the cord.
- This air purifier is not a substitute for proper ventilation, regular vacuum cleaning or an extractor hood or fan while cooking.
- Leave at least 20cm of space behind and on both sides of the unit and leave at least 30cm space above the unit.
- When the unit is in operation, please place it at least 2m away from equipment that emits electric waves such as televisions, radios and clocks, to prevent electrical interference from occurring.
- Do not use the unit in bathrooms, kitchens, humid areas, near fireplaces, or place it in proximity to flammable or combustible products, as electric shock and a fire hazard may result.
- Do not clean the unit with water or any other liquid including flammable products.
- Never operate the unit if the plug or cord appears damaged. Contact the authorised distributor or qualified personnel immediately for examination and repair.
- Do not insert fingers or foreign objects into the air intake or air outlet, or block them by placing items on the air outlet or in front of the air intake.
- Do not place anything on top of the unit and do not sit on the unit.
- Do not place the unit directly below an air conditioner as condensation may drip into the unit.
- Do not operate this unit when using indoor insect repellents (aerosols) or in places with oily residues, burning incense or chemical fumes.
- Do not use the unit in a room with major temperature changes, as this may cause condensation inside the unit.
Product diagram
Purification system
1. Cleanable Pre-Filter
Traps large particles such as human hair, pet dander and dust particles. Helps to extend the life of the HEPA and Activated Carbon filters.
2. True HEPA Filter
Traps up to 99.97% of allergens and airborne contaminants down to 0.3 microns in size. These allergens include lung damaging dust, mould spores, plant spores, pet dander and pollen.
3. Activated Carbon Filter
Neutralises odours and Volatile Organic Compounds (VOC’s) such as formaldehyde and benzene, as well as other harmful fumes emitted by household products.
4. UV-C Light (254nm)
Inactivates microbes such as germs, viruses, fungi and bacteria.
5. Negative Ions
Improve indoor air quality by combining with dust or reacting with odour molecules and removing them from the air we breathe.
Air quality indicator
The digital display on the front of the air purifier indicates the current air quality by measuring the level of fine particulate matter (PM2.5), indoor relative humidity, and indoor temperature.
Fine Particulate Matter (PM2.5)
PM2.5 refers to atmospheric particulate matter (PM) that have a diameter of less than 2.5 micrometers, which is about 3% the diameter of a human hair. These particulate matter can come from various sources indoors, from chemicals in cleaning supplies, building products, furniture and carpeting, to mould, bacteria, dust mites and even from cooking. Studies have shown that inhaling too much fine particulate matter can cause health issues and trigger or worsen chronic disease such as asthma, heart attack, bronchitis and other respiratory problems.
Due to the many adverse effects fine particles can inflict on a large number of people, PM2.5 is one of the major pollutants closely monitored by health authorities around the world. The table below provides a rough indication of what levels of PM2.5 are harmful:
| μg/m3 | Indoor air quality |
| <75 | Good |
| 76-150 | Average |
| >151 | Bad |
Indoor Relative Humidity
Indoor humidity levels also provide a good indication of healthy indoor air quality. In general, a relative humidity level of 45 to 60% is optimum indoors. A humidity level of 50% is recommended to inhibit dust mites, mould, and bacteria growth. In colder climates, a lower humidity level of 30 to 40% may be preferred to prevent condensation on windows and other surfaces.
Control panel
TIMER BUTTON
The air purifier can be timed to operate for intervals of 1, 2, 4, or 8 hours, stopping automatically when the selected operating time has elapsed.
Press this button repeatedly until the desired timer setting is selected (the LED will light up).
To select the continuous operating mode, press the button repeatedly until all the timer lights are off.
UV BUTTON
Press this button to turn the UV-C light function on or off.
POWER BUTTON
Press this button to turn the air purifier on or off.
Note: The negative ion generator turns on and off with the unit and cannot be controlled separately.
FILTER RESET BUTTON
This light flashes after 2,000 hours of use to indicate that the filters need replacement. Press this button to reset this after the filters have been replaced.
FAN SPEED BUTTON
The air purifier has three fan speeds and three modes (sleep, turbo, auto). Press this button repeatedly until the desired fan speed setting is selected (the LED will light up).
CHILD LOCK FUNCTION
Press and hold the Filter Reset and Fan Speed buttons for 3 seconds to turn on the Child Lock function.
The power button light will flash (0.5 seconds on and 0.5 seconds off) to indicate that Child Lock function is activated. When Child Lock is activated, pressing the control panel buttons will not have any effect.
To deactivate the Child Lock function, press and hold the Filter Reset and Fan Speed buttons for 3 seconds. All control panel buttons will return to normal function.
Operating instructions
Note: Remove plastic bags from filters before first use.
- Plug the appliance into a suitable electrical outlet.
- Press the power button to turn the appliance on.
- Change the timer, fan speed or UV settings if desired (refer to Control Panel description).
- Press the power button to turn the appliance off.
When the unit is not in use, switch it off and unplug it from the electrical outlet.
Cleaning and maintenance
Cleaning the unit
- Always unplug the power supply before cleaning the unit.
- Do not put the unit into water or use water to wash it directly.
- Do not use alcohol, oil, benzene, or any corrosive or flammable detergent to clean the unit.
- Use a soft cloth with mild detergent to clean the unit, and make sure the unit is completely dry after cleaning.
- Regularly clean the inside and outer surface to prevent dust from gathering.
- To maintain or replace filters, see Filter Replacement instructions.
Storage instructions
If the unit will not be in use for a long time, please pack and store it properly away from moisture and direct sunlight:
- Unplug the power supply of the unit.
- Clean the pre-filter.
- Use a soft cloth to clean the air intake and air outlet.
Caution
Proper use and regular maintenance can ensure efficient operation and extend the life of the unit. Do not attempt to repair or adjust any electrical or mechanical functions on this unit. All servicing should be performed by qualified personnel only.
Filter replacement
Filter replacement indicator
After 2,000 hours of use, the “Filter Reset” button light will flash during operation. This indicates that the filters in the air purifier need to be replaced.
Replace the filters according to the instructions below. Then, press the Filter Reset button to reset the built-in filter replacement timer.
Filter replacement instructions
The ION430 comes with the filters fitted inside, but you will need to remove the plastic packaging from the filters before using the air purifier for the first time.
When replacing with new filters, remove all packaging and place filters into the unit as described below.
Tip: Place the appliance against a wall for more stability when you remove or
insert filters.
Note: Make sure you insert the filters in the correct order and position.
Step 1. Hold the top of the front panel and pull it forward to remove it from the air purifier.
Step 2. Remove all packaging materials from the Pre+HEPA filter and the Carbon filter.
Step 3. Place the 3-in-1 filter into the air purifier with the tag pointing out towards you.
Step 4. Reattach the front panel by mounting the panel onto the bottom of the air purifier first (A). Then, gently push the top of the panel against the body of the air purifier (B) to secure it into place.
Pre-filter maintenance
- Clean the pre-filter regularly to maintain air purifier performance.
- The pre-filter can be gently vacuumed using hand tool attachments (no rotating brushes).
- Do not use any solutions, brushes or sharp objects to clean the pre-filter, as this can damage the filter.
HEPA / Activated carbon filter maintenance
- The HEPA / Activated Carbon filter is not washable.
- A vacuum cleaner may be used to gently clean the HEPA filter periodically.
- Replace with new filters when the filter replacement light comes on.
Troubleshooting guide
Unit not operating
Possible cause: Power cable not plugged in
Solution: Plug in power cable
Possible cause: Power cable not plugged in properly
Solution: Plug in power cable correctly
Possible cause: Front cover not attached properly
Solution: Reattach the front cover
Loud noise
Possible cause: Filters not unpacked
Solution: Unpack the filter packaging (see Filter Replacement Instructions)
Possible cause: Too much dust on pre-filter
Solution: Clean the pre-filter
Possible cause: HEPA and Activated Carbon filters dirty
Solution: Replace HEPA and Activated Carbon filters
Abnormal noise
Possible cause: Loose parts inside the unit
Solution: Contact customer service centre
Possible cause: Motor broken
Solution: Contact customer service centre
Indicator lights not switched on
Possible cause: Product circuit control failure
Solution: Contact customer service centre
UV-C indicator light is off
Possible cause: UV-C is switched off
Solution: Press the UV-C button to enable it
Possible cause: UV-C light broken or needs replacement
Solution: Contact customer service centre
Reduced airflow
Possible cause: Filters are dirty
Solution: Replace filters
Possible cause: Filters not unpacked
Solution: Unpack filters
