Ionmax Breeze Plus user manual

📖 View and download the Ionmax Breeze Plus user manual [PDF] here

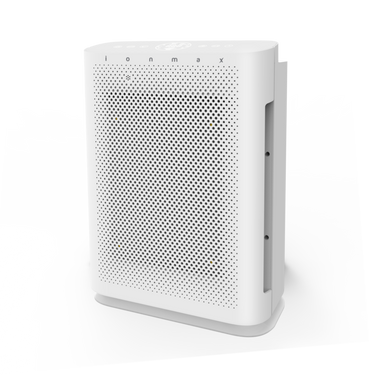

Thank you for purchasing the Ionmax Breeze Plus antiviral HEPA air purifier. The Breeze Plus ION422 can help to improve the indoor quality in your home or office. Paired with a WIFI app, you can control and monitor your air purifier and indoor air quality easily from your mobile phone.

⚠️ Note: Remove plastic bags from filters before first use

Safety instructions

PLEASE READ ALL THE TIPS AND WARNINGS BELOW BEFORE USING THE AIR PURIFIER.

• Use only as directed in the User Manual.
• Do not allow children or persons with reduced physical, sensory, or mental capabilities to operate the unit without adult supervision.
• Only designed for use in a 220-240V, 50Hz outlet.
• Use indoors only.
• Only operate the unit when it is fully assembled.
• Never touch the unit with wet hands or allow it to come into contact with water.
• Turn off all controls before unplugging the power supply.
• Always disconnect the unit from the power supply before moving or cleaning the unit, and when the unit is not in use.
• When removing the power plug, always hold the plug and never pull the cord.
• This air purifier is not a substitute for proper ventilation, regular vacuum cleaning or an extractor hood or fan while cooking.
• Do not insert fingers or foreign objects into the air intake or air outlet, or block them by placing items on the air outlet or in front of the air intake.
• For proper airflow, position the unit at least 30cm away from any wall or furniture.
• When the unit is in operation, please place it at least 2m away from equipment that emits electric waves such as televisions, radios and clocks, to prevent electrical interference from occurring.
• Do not use the unit in bathrooms, kitchens, humid areas, near fireplaces, or place it in proximity to flammable or combustible products, as electric shock and a fire hazard may result.
• Do not clean the unit with water or any other liquid including flammable products.
• Never operate the unit if the plug or cord appears damaged. Contact the authorised distributor or qualified personnel immediately for examination and repair.
• Do not place anything on top of the unit and do not sit on the unit.
• Do not place the unit directly below an air conditioner as condensation may drip into the unit.
• Do not operate this unit when using indoor insect repellents (aerosols) or in places with oily residues, burning incense or chemical fumes.
• Do not use the unit in a room with major temperature changes, as this may cause condensation inside the unit.

Product diagram

Purification system

1. Cleanable Pre-Filter
Traps large particles such as human hair, pet dander and dust particles. Helps to extend the life of the HEPA and Activated Carbon filters.

2. Activated Carbon Filter
Neutralises odours and Volatile Organic Compounds (VOC's) such as formaldehyde and benzene, as well as other harmful fumes emitted by household products.

3. H13 True HEPA Antiviral Filter
Captures 99.97% of ultrafine airborne particles 0.3 microns in size, such as viruses, bacteria, mould spores, allergens, pollen and dust mites.

4. UV-C Light (254NM)
Inactivates microbes such as germs, viruses, fungi and bacteria.

5. Negative Ions
Improve indoor air quality by combining with dust or reacting with odour molecules and removing them from the air we breathe.

Setting up the unit

1. Remove the air purifier from the box and plastic bag.
2. Place the air purifier on a firm, flat, and leveled surface. For proper air flow, locate the unit at least 30cm from any wall or furniture and ensure ensure its air inlet and outlet are not blocked.
3. Open the front cover and remove the plastic bags from the filters (Refer to FILTER REPLACEMENT INSTRUCTIONS for detailed guide).
4. Replace the filters and front cover into position.
5. Plug the appliance into a suitable electrical outlet.
6. When the unit is not in use, switch it off and unplug it from the electrical outlet.

IMPORTANT: When moving the air purifier, always lift unit by the carrying handle located on the back.

Control panel

  POWER BUTTON

Press this button to switch on or switch off the unit.

 AUTO BUTTON

Press this button to turn Auto mode on or off. During Auto mode, the "AUTO" indicator will light up on the display, and the fan speed will be adjusted automatically according to the air quality.
To manually adjust fan speed or turn off Auto mode, press the Speed button.

 SLEEP BUTTON

Press this button to turn Sleep mode on. The Sleep indicator will flash for 10 seconds, then the ring indicator and LED display will switch off. The fan speed will change to Low.
To turn off Sleep mode, press the Sleep button again or any other buttons.

 SPEED BUTTON

Press this button to adjust the Fan Speed between Low, Medium, High and Turbo.

 UV/ ION BUTTON

Press once to turn on the UV light only.
Press twice to turn on the UV light and Ioniser.
Press three times to turn on the Ioniser only.
Press four times to turn off the UV light and Ioniser.
Long press for 3-5 seconds to enter the secondary menu. Refer to the next section: Secondary Menu.

 TIMER BUTTON

Press this button to set a Timer for the air purifier to operate in intervals of 1 hour, from 1 h to 9h, or 0h (no timer). When a timer is set, the air purifier will stop automatically when the operating time has elapsed.

SECONDARY MENU
Press and hold the  button for 3-5 seconds to switch to the secondary menu for additional settings for Child Lock (), Wi-Fi (), and HEPA Reset (). Once you have accessed the Secondary Menu, press the  button to scroll through the settings, and press the  button to confirm a setting.

 CHILD LOCK FUNCTION

Press the   button until  is displayed on the LED screen.
Press the  button to enable the Child Lock function. The  icon will appear on the LED display to indicate that Child Lock is enabled.
When Child Lock is enabled, the control panel will be disabled and pressing any buttons will have no effect on the air purifier operation.
To disable the Child Lock function, press and hold the  button for 3-5 seconds to enter the secondary menu, press the  button to enter , and press the  button to remove the Child Lock. The  icon will disappear from the LED display to indicate that Child Lock has been disabled.

 RESET FILTER USAGE

When the  icon appears on the LED Display, it indicates that the filter needs to be replaced.
After replacing with brand new filters (refer to Filter Replacement Instructions for detailed guide), press and hold the  button for 3-5 seconds to enter the secondary menu, press the  button to enter  and press the  button to reset the filter usage countdown timer. The icon will disappear from the LED display.

 WI-Fl PAIRING

Enables Wi-Fi Pairing in EZ or AP mode.
Press and hold the  button for 3-5 seconds to enter the secondary menu, press the  button to enter and press the  button to enable Wi-Fi. The Wi-Fi icon will appear on the LED display:

  Fast Flashing: EZ Mode
 Slow Flashing: AP Mode
Refer to Wi-Fi Setup for further instructions.

Wi-Fi setup

Get the link to the lonmax app and detailed instructions for pairing it with your air purifier at: https://bit.ly/ionmax-app

Display screen

Fan speed indicator

PM2.5 and air quality indicator

Wi-Fi connectivity

Child lock mode

Sleep mode

 Replace filter

 Timer indicator

 Auto operation indicator

Cleaning and Maintenance

CLEANING THE UNIT
The air purifier should be cleaned at least once a month.
The pre-filter and activated carbon filter attached to the HEPA filter should be cleaned every month or more frequently, depending on environmental conditions.

• Always unplug the power supply before cleaning the unit.
• Do not put the unit into water or use water to wash it directly.
• Do not use alcohol, oil, benzene, or any corrosive or flammable detergent to clean the unit.
• Use a soft cloth with mild detergent to clean the unit, and make sure the unit is completely dry after cleaning.
• Regularly clean the inside and outer surface to prevent dust from gathering.

CLEANING THE FILTER

• The 3-in-1 combination filter consists of multiple layers that include a prefilter, activated carbon filter, and antiviral HEPA filter.
• Use a vacuum cleaner with a soft brush attachment to remove lint and dirt from the 3-in-1 filter.
• Only the removable pre-filter on the 3-in-1 filter is washable. Ensure the pre-filter is completely dry after washing before attaching it back to the combination filter and replacing it in the air purifier.

STORAGE INSTRUCTIONS
If the unit will not be in use for a long time, please pack and store it properly away from moisture and direct sunlight:

• Unplug the power supply of the unit.
• Clean the pre-filter.
• Use a soft cloth to clean the air intake and air outlet.

DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. All servicing should be performed by qualified personnel only.

Filter replacement

FILTER REPLACEMENT INDICATOR
After approximately 6 months of use, the "REPLACE FILTER" light will flash during operation.
Replace the filters according to the instructions below.
Then, follow the instructions under the Secondary Menu "HEP (Reset Filter Usage)" to reset the filter usage countdown timer and remove the "REPLACE FILTER" indicator.

FILTER REPLACEMENT INSTRUCTIONS
The ION422 comes with the filter fitted inside. Please remove the plastic packaging from the filter before using the air purifier.
When replacing with a new filter, remove all plastic packaging and place the filter into the unit, as describe below.
Tip: Place the appliance against a wall for more stability when you remove or insert the filter.
Note: Make sure you insert the filter in the correct position.

Step 1: Place your fingers in the recesses of the side panels and gently pull
the top part of the front panel towards you. Then, lift the hooks at the bottom of the panel out of the bottom of the unit.

Step 2: Remove the combination filter from the unit. Remove all packaging material from the new filters.

Step 3: Place the new combination filter into the unit, with the antiviral HEPA
filter facing in and pre-filter facing out. Note: The pre-filter is already attached together with the activated carbon filter and antiviral HEPA filter.

Step 4: To reattach the front panel, insert the bottom hooks into the bottom of the unit first. Then push the panel against the body of the unit.

Troubleshooting guide

Before carrying out any of the following service checks, unplug the unit from the power supply.

Unit not operating

Possible cause: Power cable not plugged in
Solution: Plug in power cable

Possible cause: Power cable not plugged in properly
Solution: Plug in power cable properly

Possible cause: Front cover not attached properly
Solution: Reattach the front cover

Possible cause: Filter not inserted properly
Solution: Check that filter is secured firmly in place

Loud noise

Possible cause: Filters not unpacked
Solution: Unpack the filter packaging (see Filter Replacement Instructions)

Possible cause: Too much dust on pre-filter
Solution: Clean the pre-filter

Possible cause: HEPA and Activated Carbon filters dirty
Solution: Replace HEPA and Activated Carbon filters

Abnormal noise

Possible cause: Foreign object is in contact with the fan
Solution: Remove front cover and filters and remove any obstruction visible on the fan

Possible cause: Unit is positioned on uneven surface
Solution: Position the unit on a flat, stable and even surface

Possible cause: Loose parts inside the unit
Solution: Contact customer service centre

Possible cause: Motor broken
Solution: Contact customer service centre

Reduced airflow

Possible cause: Filters are dirty
Solution: Replace filters

Possible cause: Filters not unpacked
Solution: Unpack filters
