Ionmax+ ED18 user manual

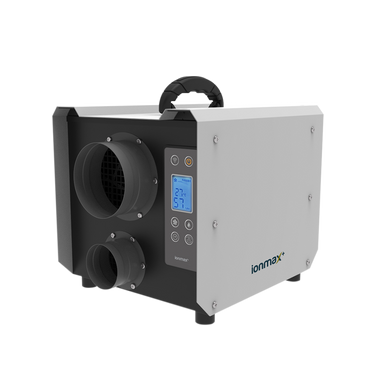

Ionmax+ ED18 industrial desiccant dehumidifier

Welcome to the user manual and installation guide for your Ionmax+ ED18 industrial desiccant dehumidifier. The user manual offers instructions to ensure successful setup, operation and maintenance of your dehumidifier. Additionally, you can refer to our provided spare parts listing for your convenience. If you require any further assistance, please do not hesitate to leave a comment below or contact our support team.


Ionmax Mobile App

Click the links below to download the Ionmax mobile app for your smartphone.

Need further help? Read our support instructions on how to install the Ionmax mobile app



Ionmax+ ED18 Video Tutorials

Ionmax+ ED18 Installation Parts List

Category Sizes & Length Main / Alter. Parts Required Where To Buy Product Description Item Number QTY
Input and Output ⌀ 115 x 56mm Main Ducted Hose Bunnings Blauberg 125mm x 3m Aluminium Ducting (4420298) 4420298 2
Input and Output ⌀ 115 x 56mm Main Clamp 125mm Bunnings Kinetic 105-127mm 304 Stainless Steel Hose Clamp 0110744 2
Input and Output ⌀ 115 x 56mm Alternative Clamp 125mm Bunnings Pacific Air 125mm Stainless Steel Worm Clamp - 2 Pack 4700434 1
Input and Output ⌀ 115 x 56mm Main Grille Vent Bunnings Pacific Air 125mm PVC Air Grille Vent 4700419 2
Input and Output ⌀ 115 x 56mm Alternative Grille Vent Bunnings Builders Edge 125mm White Grill Vent with Insect Screen 0811085 2
Humid Exhaust ⌀ 73 x 48mm Main Ducted Hose 3" (76mm) Ebay Silicone 2 Ply Black Air Ducting Flexible Air Duct Cold & Hot Air Wire Helix
Black , 1M , 76mm
263383343330 1
Humid Exhaust ⌀ 73 x 48mm Alternative Ducted Hose 3" (76mm) Amazon Dryer Vent Hose, 3'' Insulated Flexible Duct 8FT with 2 Duct Clamps, Heavy-Duty Three Layer Protection for HVAC Ventilation, Duct Fan Systems B09WCY715H 1
Humid Exhaust ⌀ 73 x 48mm Main Clamp 75mm Bunnings Kinetic 65 - 89mm 304 Stainless Steel Hose Clamp (0110742) 110742 2
Humid Exhaust ⌀ 73 x 48mm Main Grille Vent 3" Ebay 3-8" Round Air Vent Louver Grille Cover Adjustable Exhaust Office Ventilation AU 293997700906 1



Terms and Conditions:

  1. Items listed above may not always be in stock or available. Please leave a comment below if they are no longer available to be purchased.
  2. The provided parts above are based on "Full Ducting installation". Please buy the quantity based on your requirements only.
    Example: For installations with only 1 ducting output, you will only be required to buy 1 Hose and 1 Vent Grille.
  3. Ionmax will try to maintain the list as needed, and some parts listed may change due to availability.
  4. Ionmax will not be held responsible if the seller has provided you with the incorrect parts.
